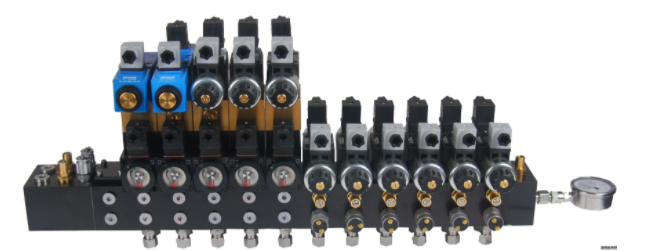

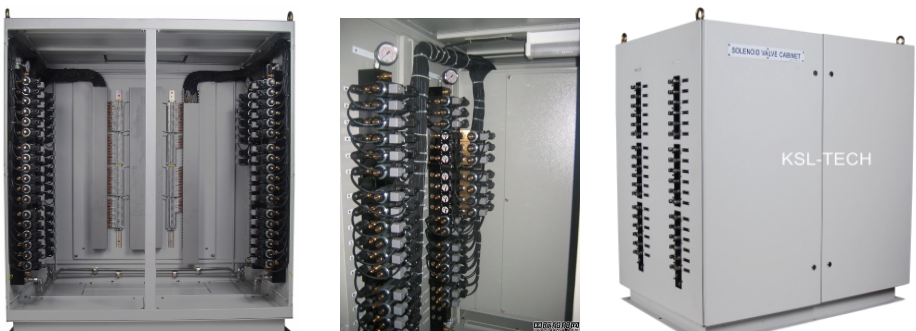

玉祥公司产品简介：SVC-H系列液压电磁阀箱在液压阀控系统中，接收控制台的开关指令去操控电磁阀换向，从而改变液压流向来开关阀门液压执行器。
SVC receives control signal from the control switches in the control station,to activate the solenoid valves which in turn use to control the direction of oil flow to each actuator.
Major Accessories主要元件：

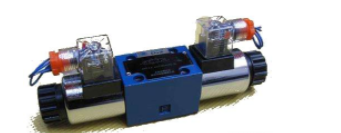

1.Solenoid directional valve电磁换向阀
●Supply电源：24VDC
●Low leakage type低泄露型
●Hand override手动操作
●Model型号：4/2 double,4/2 Spring return,4/3
●Size通经：6mm
●Max pressure最高压力：350Bar
●Max flow最高流量：80L/Min
2..Pressure switch压力开关

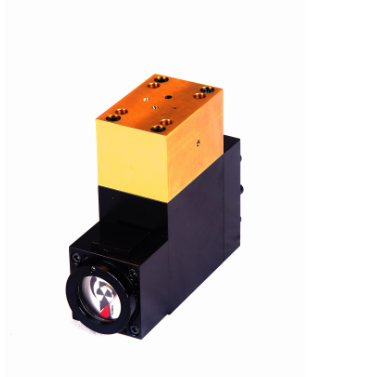

3.VP-I阀门流量计（流量位置显示器）
●To indicate valve position through measure volume of actuator
通过测量液压执行器流量来显示阀门开关或位置状态
●Model型号：VPI-E/VPI-C开关型/开度型
●安装在电磁阀箱内Install at Solenoid valve cabinet
